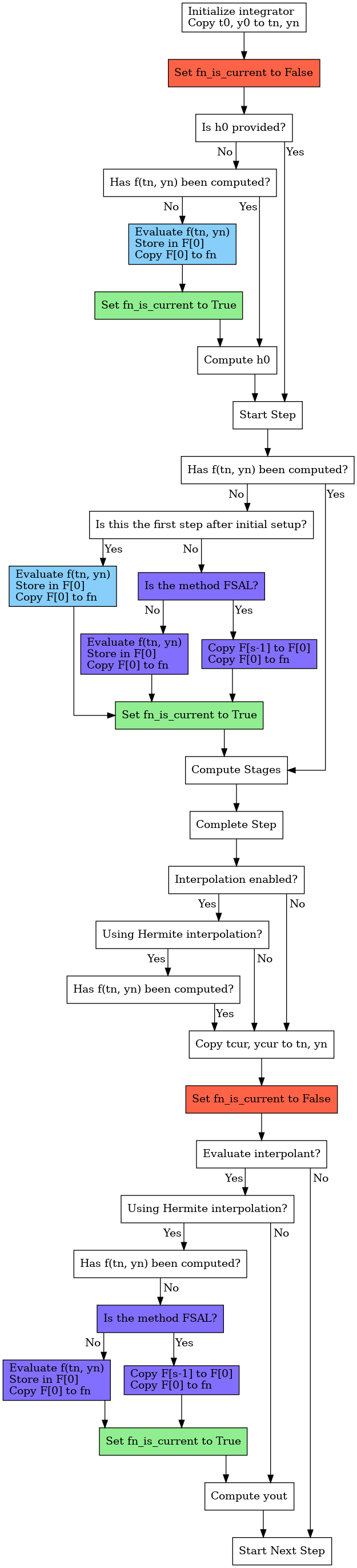

ERKStep Full RHS
ERKStep Full RHS

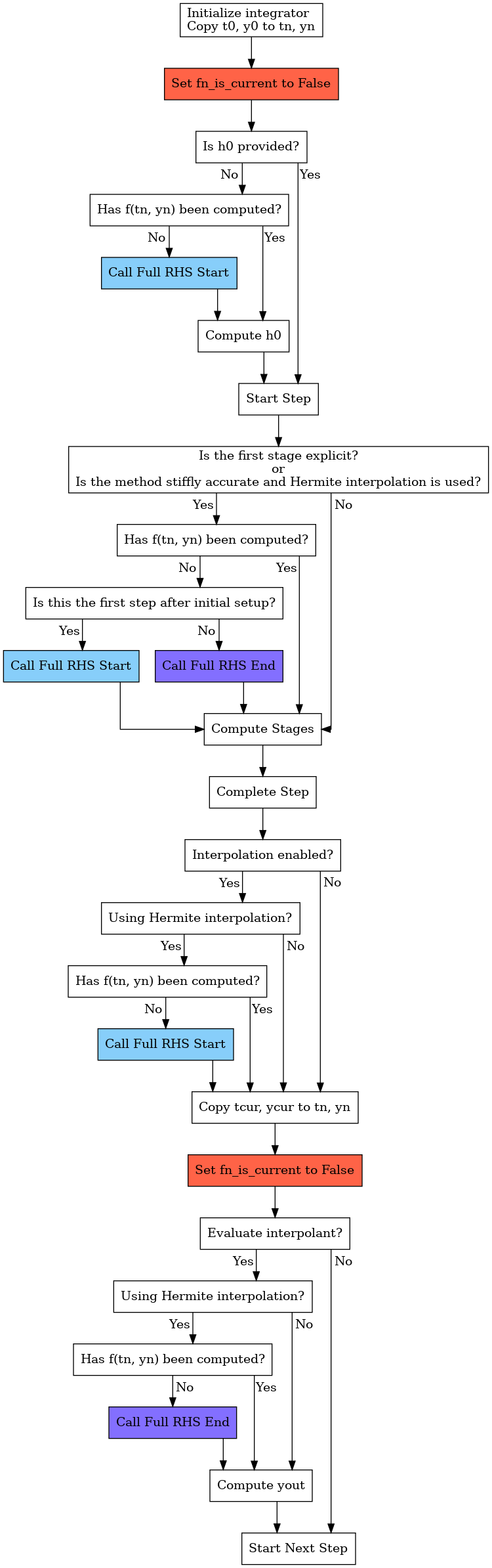

ARKStep Full RHS
Fig. 1

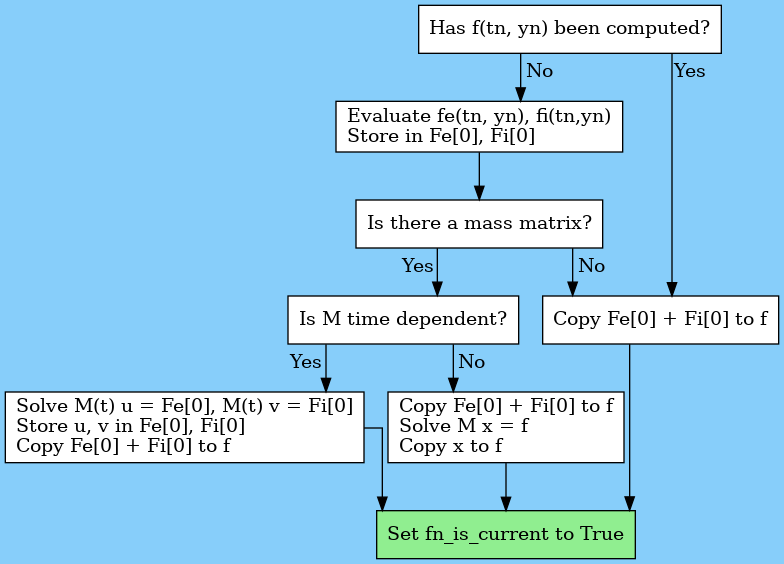

ARKStep Full RHS Start
Fig. 2

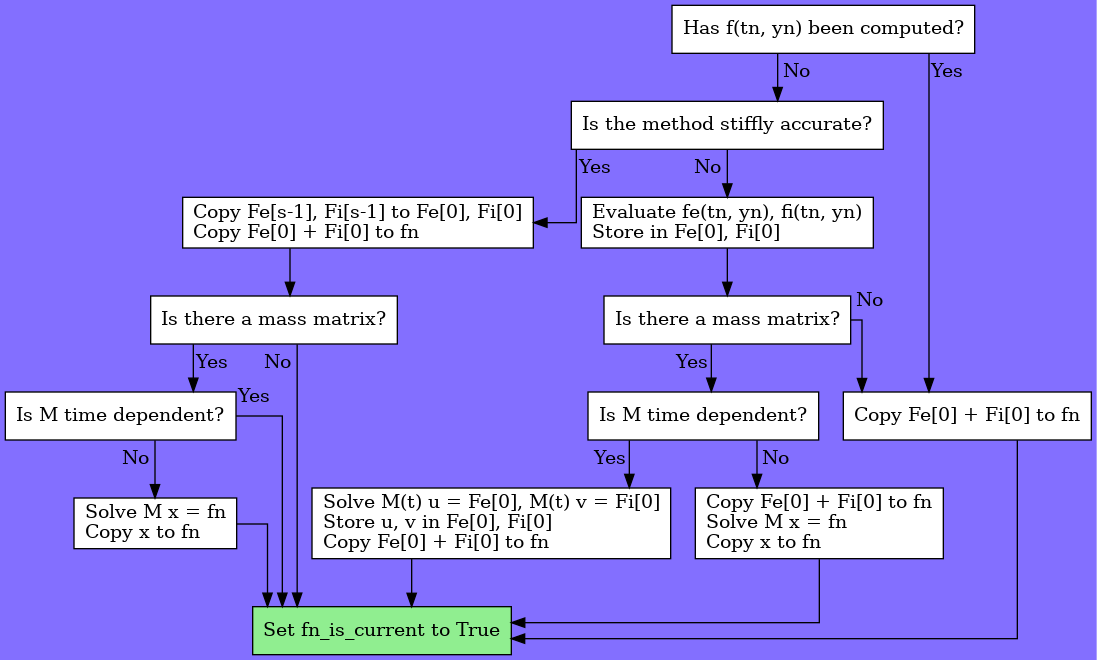

ARKStep Full RHS End
![digraph erk_fullrhs {
node [shape=box]
splines=ortho
// -----------------
// Before first step
// -----------------
init [label="Initialize integrator\lCopy t0, y0 to tn, yn\l"]
f0cur [label="Set fn_is_current to False", style=filled, fillcolor=tomato1]
h0 [label="Is h0 provided?", target="_top"]
f0_q1 [label="Has f(tn, yn) been computed?"]
eval1 [label="Evaluate f(tn, yn)\lStore in F[0]\lCopy F[0] to fn\l", style=filled, fillcolor=lightskyblue]
fcur1 [label="Set fn_is_current to True", style=filled, fillcolor=lightgreen]
h0_comp [label="Compute h0"]
start [label="Start Step"]
init -> f0cur -> h0
h0 -> start [taillabel="Yes", labeldistance=2, labelangle=45]
h0 -> f0_q1 [taillabel="No", labeldistance=2, labelangle=-45]
f0_q1 -> h0_comp [taillabel="Yes", labeldistance=2, labelangle=-45]
f0_q1 -> eval1 [taillabel="No", labeldistance=2, labelangle=-45]
eval1 -> fcur1
fcur1 -> h0_comp
h0_comp -> start
// ----------
// First step
// ----------
f0q2 [label="Has f(tn, yn) been computed?"]
step_q [label="Is this the first step after initial setup?"]
eval2 [label="Evaluate f(tn, yn)\lStore in F[0]\lCopy F[0] to fn\l", style=filled, fillcolor=lightskyblue]
fsal [label="Is the method FSAL?", style=filled, fillcolor=slateblue1]
eval3 [label="Evaluate f(tn, yn)\lStore in F[0]\lCopy F[0] to fn\l", style=filled, fillcolor=slateblue1]
copy1 [label="Copy F[s-1] to F[0]\lCopy F[0] to fn\l", style=filled, fillcolor=slateblue1]
fcur2 [label="Set fn_is_current to True", style=filled, fillcolor=lightgreen]
stages1 [label="Compute Stages"]
complete [label="Complete Step"]
start -> f0q2
f0q2 -> stages1 [taillabel="Yes", labeldistance=2, labelangle=45]
f0q2 -> step_q [taillabel="No", labeldistance=2, labelangle=-45]
step_q -> eval2 [taillabel="Yes", labeldistance=2, labelangle=45]
eval2 -> fcur2
step_q -> fsal [taillabel="No", labeldistance=2, labelangle=-45]
fsal -> eval3 [taillabel="No", labeldistance=2, labelangle=-45]
eval3 -> fcur2
fsal -> copy1 [taillabel="Yes", labeldistance=2, labelangle=45]
copy1 -> fcur2
fcur2 -> stages1 -> complete
// -------------
// Complete step
// -------------
interp_update [label="Interpolation enabled?"]
interp_type1 [label="Using Hermite interpolation?"]
f0q3 [label="Has f(tn, yn) been computed?"]
update_yn [label="Copy tcur, ycur to tn, yn"]
fcur3 [label="Set fn_is_current to False", style=filled, fillcolor=tomato1]
complete -> interp_update
interp_update -> update_yn [taillabel="No", labeldistance=2, labelangle=45]
interp_update -> interp_type1 [taillabel="Yes", labeldistance=2, labelangle=-45]
interp_type1 -> update_yn [taillabel="No", labeldistance=2, labelangle=45]
interp_type1 -> f0q3 [taillabel="Yes", labeldistance=2, labelangle=-45]
f0q3 -> update_yn [taillabel="Yes", labeldistance=2, labelangle=45]
update_yn -> fcur3
// ----------
// After step
// ----------
interp_eval [label="Evaluate interpolant?"]
interp_type2 [label="Using Hermite interpolation?"]
f1q1 [label="Has f(tn, yn) been computed?"]
fsal1 [label="Is the method FSAL?", style=filled, fillcolor=slateblue1]
eval4 [label="Evaluate f(tn, yn)\lStore in F[0]\lCopy F[0] to fn\l", style=filled, fillcolor=slateblue1]
copy2 [label="Copy F[s-1] to F[0]\lCopy F[0] to fn\l", style=filled, fillcolor=slateblue1]
fcur4 [label="Set fn_is_current to True", style=filled, fillcolor=lightgreen]
interp_yout [label="Compute yout"]
step2 [label="Start Next Step"]
fcur3 -> interp_eval
interp_eval -> step2 [taillabel="No", labeldistance=2, labelangle=45]
interp_eval -> interp_type2 [taillabel="Yes", labeldistance=2, labelangle=-45]
interp_type2 -> interp_yout [taillabel="No", labeldistance=2, labelangle=45]
interp_type2 -> f1q1 [taillabel="Yes", labeldistance=2, labelangle=-45]
f1q1 -> fsal1 [taillabel="No", labeldistance=2, labelangle=45]
fsal1 -> eval4 [taillabel="No", labeldistance=2, labelangle=-45]
eval4 -> fcur4
fsal1 -> copy2 [taillabel="Yes", labeldistance=2, labelangle=45]
copy2 -> fcur4
fcur4 -> interp_yout -> step2
}](../../../_images/graphviz-dad94e1bf5c51d1cdd12b769e25da6942847055f.png)
![digraph ark_fullrhs_start {
node [shape=box, style=filled, fillcolor=white]
splines=ortho
bgcolor=lightskyblue
// --------------
// Full RHS Start
// --------------
fcur [label="Has f(tn, yn) been computed?"]
eval [label="Evaluate fe(tn, yn), fi(tn,yn)\lStore in Fe[0], Fi[0]\l"]
mass_a [label="Is there a mass matrix?"]
mass_b [label="Is M time dependent?"]
mass_c [label="Solve M(t) u = Fe[0], M(t) v = Fi[0]\lStore u, v in Fe[0], Fi[0]\lCopy Fe[0] + Fi[0] to f\l"]
mass_d [label="Copy Fe[0] + Fi[0] to f\lSolve M x = f\lCopy x to f\l"]
copy [label="Copy Fe[0] + Fi[0] to f"]
return [label="Set fn_is_current to True", style=filled, fillcolor=lightgreen]
fcur -> copy [taillabel="Yes", labeldistance=2, labelangle=45]
fcur -> eval [taillabel="No", labeldistance=2, labelangle=45]
eval -> mass_a
mass_a -> copy [taillabel="No", labeldistance=2, labelangle=45]
copy -> return
mass_a -> mass_b [taillabel="Yes", labeldistance=2, labelangle=-45]
mass_b -> mass_c [taillabel="Yes", labeldistance=2, labelangle=-45]
mass_c -> return
mass_b -> mass_d [taillabel="No", labeldistance=2, labelangle=45]
mass_d -> return
}](../../../_images/graphviz-6d84c27efc76b62a9dab671365f53df28ba90147.png)
![digraph ark_fullrhs_start {
node [shape=box, style=filled, fillcolor=white]
splines=ortho
bgcolor=slateblue1
// ------------
// Full RHS End
// ------------
fcur [label="Has f(tn, yn) been computed?"]
sa [label="Is the method stiffly accurate?"]
eval [label="Evaluate fe(tn, yn), fi(tn, yn)\lStore in Fe[0], Fi[0]\l"]
mass_a1 [label="Is there a mass matrix?"]
mass_a2 [label="Is there a mass matrix?"]
mass_b1 [label="Is M time dependent?"]
mass_b2 [label="Is M time dependent?"]
mass_c [label="Solve M(t) u = Fe[0], M(t) v = Fi[0]\lStore u, v in Fe[0], Fi[0]\lCopy Fe[0] + Fi[0] to fn\l"]
mass_d1 [label="Solve M x = fn\lCopy x to fn\l"]
mass_d2 [label="Copy Fe[0] + Fi[0] to fn\lSolve M x = fn\lCopy x to fn\l"]
copy_1 [label="Copy Fe[0] + Fi[0] to fn"]
copy_2 [label="Copy Fe[s-1], Fi[s-1] to Fe[0], Fi[0]\lCopy Fe[0] + Fi[0] to fn\l"]
return [label="Set fn_is_current to True", style=filled, fillcolor=lightgreen]
fcur -> copy_1 [taillabel="Yes", labeldistance=2, labelangle=45]
fcur -> sa [taillabel="No", labeldistance=2, labelangle=45]
sa -> copy_2 [taillabel="Yes", labeldistance=2, labelangle=45]
copy_2 -> mass_a1
mass_a1 -> return [taillabel="No", labeldistance=2, labelangle=-45]
mass_a1 -> mass_b1 [taillabel="Yes", labeldistance=2, labelangle=45]
mass_b1 -> mass_d1 [taillabel="No", labeldistance=2, labelangle=-45]
mass_d1 -> return
mass_b1 -> return [taillabel="Yes", labeldistance=2, labelangle=45]
sa -> eval [taillabel="No", labeldistance=2, labelangle=-45]
eval -> mass_a2
mass_a2 -> copy_1 [taillabel="No", labeldistance=2, labelangle=45]
copy_1 -> return
mass_a2 -> mass_b2 [taillabel="Yes", labeldistance=2, labelangle=-45]
mass_b2 -> mass_c [taillabel="Yes", labeldistance=2, labelangle=-45]
mass_c -> return
mass_b2 -> mass_d2 [taillabel="No", labeldistance=2, labelangle=45]
mass_d2 -> return
}](../../../_images/graphviz-4f2ccccb934dfb1b0f964bb15de69436fcf4bdd9.png)
![digraph ark_fullrhs {
node [shape=box]
splines=ortho
// -----------------
// Before first step
// -----------------
init [label="Initialize integrator\lCopy t0, y0 to tn, yn\l"]
f0cur [label="Set fn_is_current to False", style=filled, fillcolor=tomato1]
h0 [label="Is h0 provided?"]
f0_q [label="Has f(tn, yn) been computed?"]
rhs_1 [label="Call Full RHS Start", style=filled, fillcolor=lightskyblue]
h0_comp [label="Compute h0"]
start [label="Start Step"]
init -> f0cur -> h0
h0 -> start [taillabel="Yes", labeldistance=2, labelangle=45]
h0 -> f0_q [taillabel="No", labeldistance=2, labelangle=-45]
f0_q -> h0_comp [taillabel="Yes", labeldistance=2, labelangle=45]
f0_q -> rhs_1 [taillabel="No", labeldistance=2, labelangle=-45]
rhs_1 -> h0_comp
h0_comp -> start
// ----------
// Start step
// ----------
method_q [label="Is the first stage explicit?\nor\nIs the method stiffly accurate and Hermite interpolation is used?"]
step_q [label="Is this the first step after initial setup?"]
fn_q [label="Has f(tn, yn) been computed?"]
rhs_2 [label="Call Full RHS Start", style=filled, fillcolor=lightskyblue]
rhs_3 [label="Call Full RHS End", style=filled, fillcolor=slateblue1]
stages [label="Compute Stages"]
complete [label="Complete Step"]
start -> method_q
method_q -> stages [taillabel="No", labeldistance=2, labelangle=45]
method_q -> fn_q [taillabel="Yes", labeldistance=2, labelangle=-45]
fn_q -> stages [taillabel="Yes", labeldistance=2, labelangle=-45]
fn_q -> step_q [taillabel="No", labeldistance=2, labelangle=-45]
step_q -> rhs_2 [taillabel="Yes", labeldistance=2, labelangle=-45]
step_q -> rhs_3 [taillabel="No", labeldistance=2, labelangle=-45]
rhs_2 -> stages
rhs_3 -> stages
stages -> complete
// -------------
// Complete step
// -------------
interp_update [label="Interpolation enabled?"]
interp_type1 [label="Using Hermite interpolation?"]
f0q3 [label="Has f(tn, yn) been computed?"]
rhs3 [label="Call Full RHS Start", style=filled, fillcolor=lightskyblue]
update_yn [label="Copy tcur, ycur to tn, yn"]
fcur1 [label="Set fn_is_current to False", style=filled, fillcolor=tomato1]
complete -> interp_update
interp_update -> update_yn [taillabel="No", labeldistance=2, labelangle=45]
interp_update -> interp_type1 [taillabel="Yes", labeldistance=2, labelangle=-45]
interp_type1 -> update_yn [taillabel="No", labeldistance=2, labelangle=45]
interp_type1 -> f0q3 [taillabel="Yes", labeldistance=2, labelangle=-45]
f0q3 -> update_yn [taillabel="Yes", labeldistance=2, labelangle=45]
f0q3 -> rhs3 [taillabel="No", labeldistance=2, labelangle=-45]
rhs3 -> update_yn -> fcur1
// ----------
// After step
// ----------
interp_eval [label="Evaluate interpolant?"]
interp_type2 [label="Using Hermite interpolation?"]
f1q1 [label="Has f(tn, yn) been computed?"]
rhs4 [label="Call Full RHS End", style=filled, fillcolor=slateblue1]
interp_yout [label="Compute yout"]
return [label="Start Next Step"]
fcur1 -> interp_eval
interp_eval -> return [taillabel="No", labeldistance=2, labelangle=45]
interp_eval -> interp_type2 [taillabel="Yes", labeldistance=2, labelangle=-45]
interp_type2 -> interp_yout [taillabel="No", labeldistance=2, labelangle=45]
interp_type2 -> f1q1 [taillabel="Yes", labeldistance=2, labelangle=-45]
f1q1 -> interp_yout [taillabel="Yes", labeldistance=2, labelangle=45]
f1q1 -> rhs4 [taillabel="No", labeldistance=2, labelangle=45]
rhs4 -> interp_yout -> return
}](../../../_images/graphviz-47d3e4ffaa14778d2c2bb66e190e66997d29e994.png)
